3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

  • 1
  • 2
  • 3

Brand Name : SZGH

Model Number : SZGH08-3-9.5-1.5/2.2-4-1500

Certification : CE

Place of Origin : Shenzhen, China

MOQ : 1 set

Price : negotiation

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 300 sets per month

Packaging Details : Packaged with International Standard

Delivery Time : within 3-5 days upon receipt of full payment

Rated Power(KW) : 1.5KW

Rated Torque(N.m) : 9.5Nm

Rated current(A) : 3.7A

Max speed : 8000RPM

Rated speed : 1500RPM

H.S code : 9032899003

Power : 1.5KW

Matched Driver : SZGH-S4T1P5

Contact Now

3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

Features

CW&CCW

 Speed Error +/- 1RPM Acceleration/Deceleration time of 3000RPM 1second

Independent Quasi Stop

 Positioning with High Precision(0.03)
Rigid Tapping Max speed of tapping is 3000RPM ,Min of dental work is M3
Function of C-Axis Indexing Accuracy: +/-1 Pulse Turning/Milling 0.01rpm
Cutting in Low Speed Overload(3 times holding torque),ensure stablity of cutting,applied in casting process
High-Speed Precision Machining Constant power output over 4000RPM,stable ratoting speed,ensure finish

Strong Applicability

 Match for CNC System , PLC etc.

Powerful Development

Custome Manufacturing

Technical Specifications

Specifications:
Rated Power(W) 1.5
Rated Voltage(V) 9.5
Rated Current(A) 3.7
overload within 30minutes Power(kw) 2.2
Torque(Nm) 14
Current(A) 6
Rated Frequency(HZ) 50
Rated Speed(RPM) 1500
Max Speed with rated torque 6000
Max Speed(RPM) 8000
Rotor Inertia(kg.m^2) 0.0058
Power of Blower(W) -
Weight(KG) 25

Appearance Dimension

3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

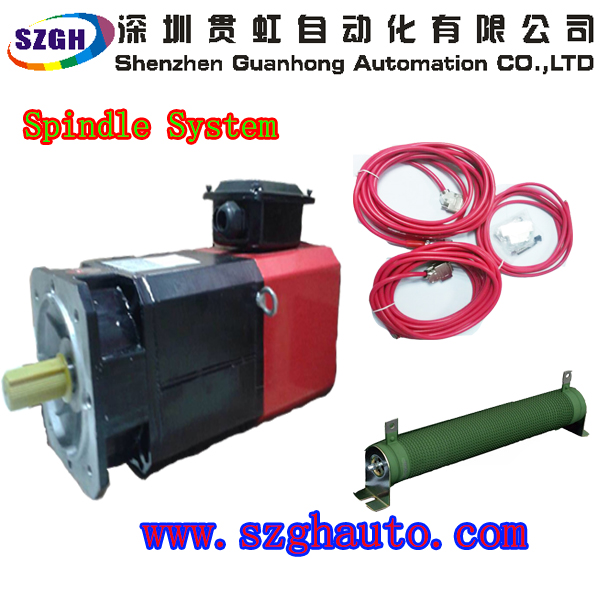

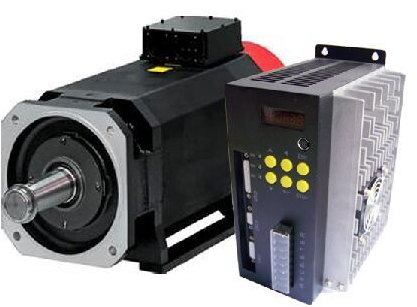

Product picture

3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine

3 phase 1.5KW AC Spindle Servo Motor for CNC lathe and milling machine
