750W 2.4nm 3000rpm Ac Servo Motor And Driver And Amplifier And Cables For Total Solution 220v
SZGH-08075DC is eonomic type , 750W servo motor with 80 flange, it is similar technical specification as 09075DC servo.
The matched servo driver SZGH-201/SZGH-301/SZGH-302.
SZGH-201 AC servo driver, can work within 1.0KW, servo motor. it has high performance, no noise, work stable.
Specification
| Motor Model | SZGH-08075DC |
| Rated Power(KW) | 0.75 |
| Rated Voltage (V) | 220/380 |
| Rated Current (A) | 3 |
| Rated Speed (RPM) | 3000 |
| Rated Torque (NM) | 2.4 |
| Peak Torque (NM) | 7.1 |
| Voltage Counstant(v/1000r/min) | 138/224 |
| Torque Coefficient(NM/A) | 2.25/3.6 |
| Rotor Inertia(Kg.m2) | 6.1*10 |
| Line-Line Resistance(Ω) | 0.48/1.37 |
| Line-Line Inductance(mH) | 3.26/8.6 |
| Machanical Time-Constant(Ms) | 6.79/6.27 |
| Encoder Resolution (PPR) | 2500 |
| Insulation Class | Class F |
| Safet Class | IP65 |
| The Operating of Evironmenal Condition | Temperature:-20℃- +45℃ |
| Weight(Kg) | 2.9 |
| Package | with air bag +polyfoam +carton+wooden |
Specifications for Driver
Mode of control:position,velocity and JOG control
Mode of input:pulse signal or analog voltage(0~±10V)
Frequency of pulse:<500KHz
Electronic gear:1/30000~30000
Precision of control:±0.01% work conditions
Input Power:single-phase or three-phase :AC380V (+10%,-15%)
frequency :50Hz±1Hz
Runing Temperature:0~55°C,relative humidity: 40-80%
Storing or Transporting Temperature:-10~70°C,relative humidity:<=90%,Vibration:<0.5G,10~60Hz
Atmosphere pressure:86-106kpa
No excessive flour dust,acid,alkali caustic gas and explosive gas,no strong electromagnetic
interference Direction of installation:servo drive’s installation direction must be upright
The ambient should be well ventilated

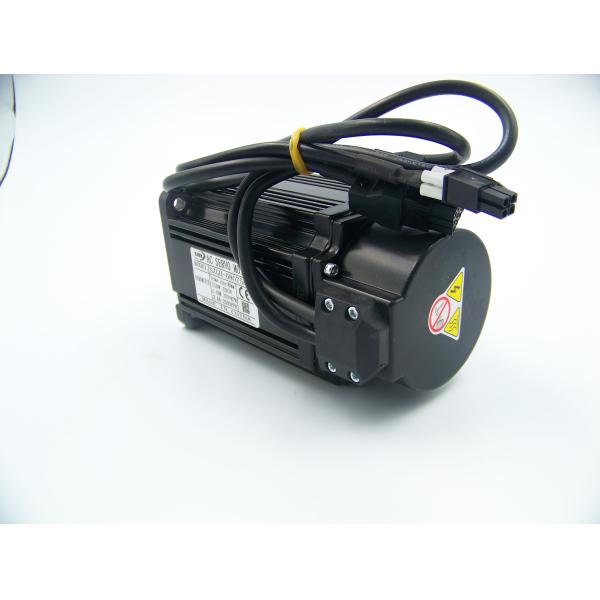

Product Pictures
Dimension
Application
CNC Machinery,printing equipment, packaging equipment, textile equipment, laser processing equipment,robotics, automated production lines, such as processing precision, processing efficiency and reliability, and other requirements of the relatively high equipment.
|
|
servo motor and driver Images
|
